2- XFLAM: Advanced Safety and Performance Under Pressure

For projects where fire safety and compliance are critical, XFLAM panels offer an elevated level of performance. Manufactured using a proprietary phenolic foam, XFLAM is certified to Factory Mutual (FM) Global standards including FM 4882, making it ideal for use in smoke-sensitive environments such as pharmaceutical buildings, cleanrooms, and cold storage.

XFLAM panels provide superior resistance to fire, achieving Group 1 classification and Fire Resistance Levels (FRL) of up to 120 minutes. At the same time, they offer thermal insulation with R-Values as high as 6.9 — ensuring optimal energy performance even in demanding conditions.

In addition to fire and thermal performance, XFLAM also resists moisture and maintains its structural integrity in high-humidity environments. Like EPS-FR, it is 100% recyclable and manufactured with no harmful emissions during production.

Flexible Design, Long-Term Durability

Both EPS and XFLAM panels are available in a variety of surface finishes and thicknesses (from 50mm to 250mm), with standard widths of 1200mm and customisable lengths up to 22 metres. Depending on your aesthetic and structural requirements, panels can be installed vertically, horizontally, or even diagonally.

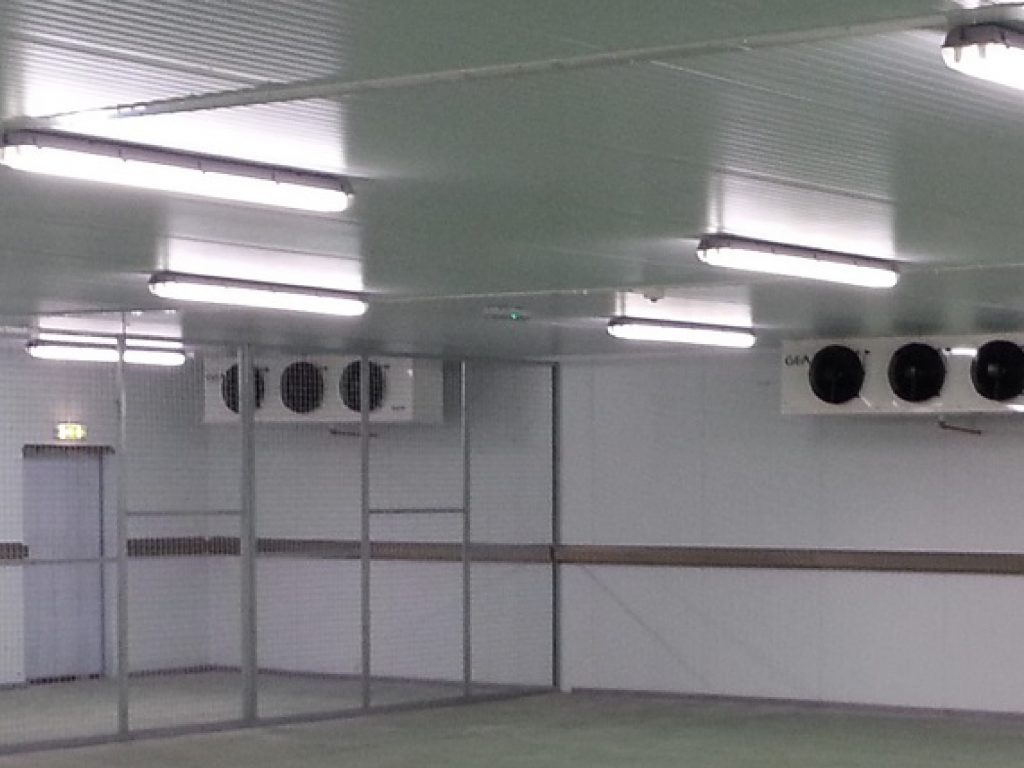

You can choose from multiple internal profiles such as Flat, Mesa, or Ribbed finishes, and optional accessories such as pre-cut haunches or thermal cuts that make onsite installation faster and cleaner. Whether your project requires a hygienic finish for a food facility or a strong internal lining for a warehouse, these insulated panels adapt easily to suit your needs.

ASKIN panels are built using quality coated steel skins (such as Colorbond® Intramax®) with superior polyester finishes that offer long-term protection and cleanability in sensitive environments.

Why Choose an Insulated Sandwich Panel System?

Using a high-quality sandwich panel can drastically improve your building's energy efficiency, reduce construction time, and ensure long-term compliance with Australian standards. Both EPS-FR and XFLAM systems support sustainable construction by reducing waste, speeding up assembly, and eliminating the need for multiple layers of insulation or fire protection.

Instead of using outdated multi-layered builds, these smart systems allow you to combine fire safety, insulation, and structural performance in one lightweight product. Whether your goal is affordability or maximum protection, you can rely on our panels to deliver on all fronts.

Need Advice or Specifications?

Not sure which panel is right for your application? Our expert team can help guide your selection based on thermal needs, compliance requirements, or fire ratings. We also provide access to technical data sheets, span tables, and compliance documents to ensure your build stays on track — from concept to completion.
